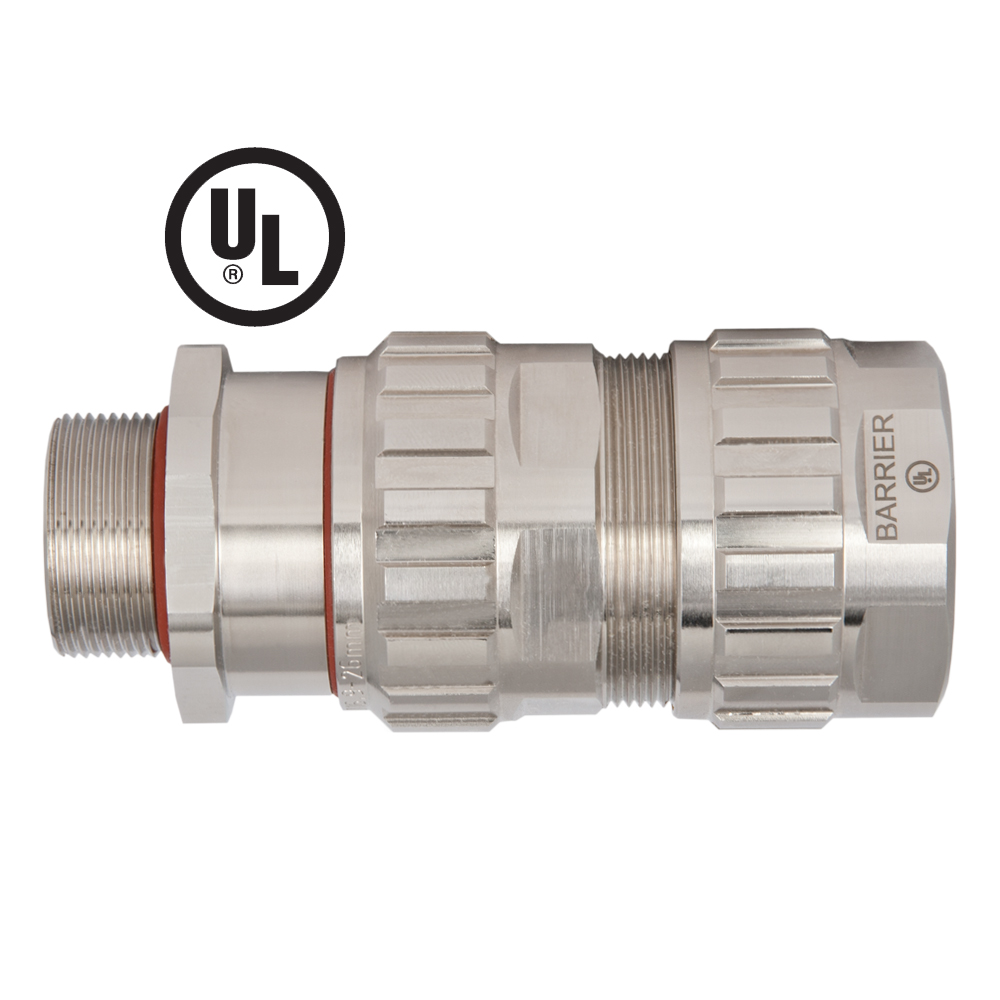

| Hole Diameter (A) | 3.5" (88.9 mm) |
|---|---|
| Body Length (H) | 5.02" (127.6 mm) |
| Thread Length (GL) | 0.63" (16 mm) |
| Wrench Flat (F1) | 3.15" (80 mm) |
| Cable Range 1 | 2.24 - 3.07" (57 - 78 mm) |
| Cable Range 2 | 2.69" (68.2 mm) |
| Cable Range 3 | 2.28" (58.0 mm) |
| Clamping Ring 2 | 0.06 -0.10" (1.5 - 2.5 mm) |
| Gland Size | 75 |
| Outer Diameter (D) | 3.54" (90 mm) |
-

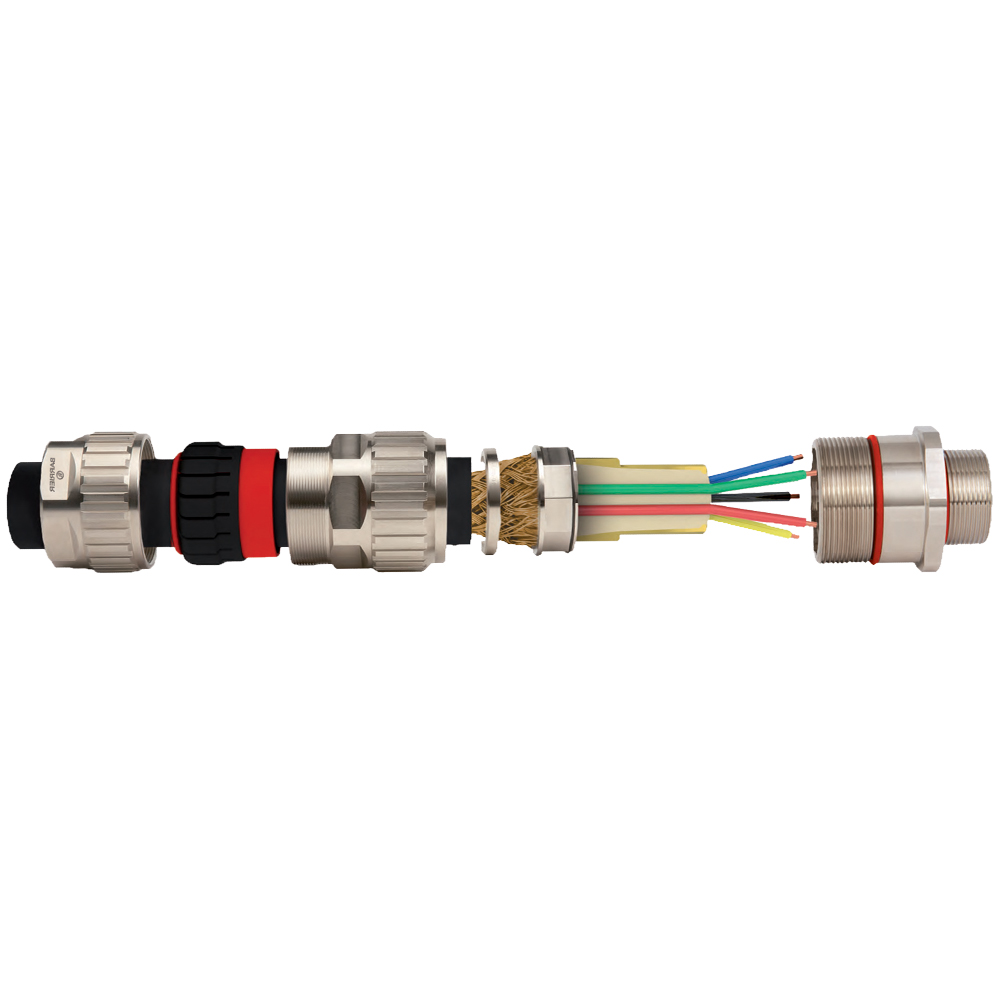

Features
Designed for all explosion proof areas with high performance regarding reliability and tightness, e.g. marine, offshore, gas conveying machinery, refineries and chemical industry.
for use in Ex-e, Ex-d areas.Certification Details: EXIOS UL Barrier
UL File: E351373
Class I, Division 1 & 2, Groups C and D
Class II, Division 1 & 2, Groups E, F and G
Class III
Class I, Zone 1, AEx d IIB
Class I, Zone 1, AEx e II
For use with armored braided marine shipboard cable
Class I, Division 2, Groups C and D
Class II, Division 2, Groups F and G
Class III
For use with unarmored marine shipboard cable
UL 2225 3rd Edition UL 514B 6th Edition
CSA C22.2 No. 174-M1984 CSA C 22.2 No. 18.3Materials Part Number Key ( Last 2 letters)
xxxxx-BB = Raw Brass
xxxxx-BR = Nickel Plated Brass
xxxxx-B1 = Brass Gland with Nickel Plated Thread.
xxxxx-SS = Stainless Steel 316 -
MaterialsOperating TemperaturePressure Rating:
-25C° to 85C° (-13°F to 185°F)
IP 68 / 5 bar
Materials:
Fittings: Raw Brass / Nickel Plated Brass
Seals: Silicone, VMQ
O-Rings: None
Clamping Insert: PA 6
Armor: Metalic Armor or Screen
Compound: Epoxy-Putty
Operating Temperature:
- 25°C to 85°C (- 13°F to 185°F)
Ratings:
UL Class 1 & 2, Div 1 rated Armored Cable Glands APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
UL approval UL (Listed Underwriters Laboratories)
ATEX type designation Flameproof and ATEX type designation Explosion Protection
