M23 Signal Technical Info
Mechanical Data
| Housing: | Copper-Zinc Alloy, Die Casting & Aluminum |
| Housing Surface: | Nickel Plated Brass, Other Surfaces Upon Request |
| Inserts (For Contacts): | Thermoplastic Polyamide PA 6 (Nylon 6/6), PBT Fire protection class V-0 |
| Contacts: | Brass Alloy |
| Contact Surface at point of Contact: | Nickel and gold plated (0,25µm Au) |
| Minimum Mating Cycles: | > 1000 |
Seals / O-Rings:| Buna-N standard, optional FPM |
|
| Temperature Range: | -40°F to 257°F (-40°C to 125°C) |
| Type of Contacts: | Crimp, solder, dip solder (PCB) |
| Protection: | IP 67 / IP 69 K per EN 60529 (connected), Type NEMA 4x |
| Cable Diameter Range: | .12 - .67" (3 - 14 mm) |
Electrical Data
| Number of Positions | 6 | 7 | 9 (8+1) | 12 | 16 | 17 | 19 (16+3) | ||
|---|---|---|---|---|---|---|---|---|---|
| Number of Contacts | 6 | 7 | 8 | 1 | 12 | 16 | 17 | 16 | 3 |
| Contact Ø (mm) | 2 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 1.5 |
| Nominal Current [A] | 20 | 20 | 8 | 20 | 8 | 8 | 8 | 8 | 20 |
| Nominal Voltage [V~] Degree of Protection 2* | 630 | 630 | 500 | 500 | 400 | 400 | 320 | ||
| Nominal Voltage [V~] Degree of Protection 3* | 300 | 300 | 200 | 200 | 160 | 160 | 100 | ||
| Test Voltage (Breakdown Voltage) [V~] | 2500 | 2500 | 2500 | 2500 | 1500 | 1500 | 1500 | ||
| Insulation Resistance [MΩ] | >1010 | >1010 | >1010 | >1010 | >106 | >106 | >106 | ||
| Max. Contact Resistance [mΩ] | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||

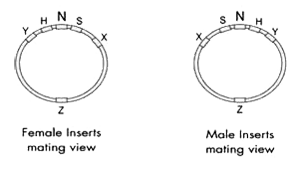

| Number of Poles | Coding Possibilities | Coding |
|---|---|---|
| 6-pole | N, S, H, X, Y and Z |  |
| 7-pole | N, S, H, X and Y | |
| 9-pole | N, S, H, X and Y | |
| 12-pole | N, S, H, X, Y and Z | |
| 16-pole | N, S, H, X, Y and Z | |
| 17-pole | N, S, H, X, Y and Z | |
| 19-pole | N, S, H, X and Y |
As standard coding groove N is opened To use other codings please remove the coding borrier.
*Degree of Protection
Potential dirt accumulation of a disconnected connector in a certain environment.
*Degree of Protection 2
No permanent conductive dirt accumulation will occur. Temporary conductive dirt accumulation, such as condensation, is possible. Typical for households, offices, laboratories and test labs.
*Degree of Protection 3
Conductive, as well as dry non-conductive dirt accumulation can occur. It can be temporarily conductive due to condensation. Typical for industrial and factory environments.
