Sealcon #: S7.001.910.108
M16 Signal Connector Insert Configurations
Hummel: M 16 Inserts, 10-pole
Hummel #: 7.001.910.108

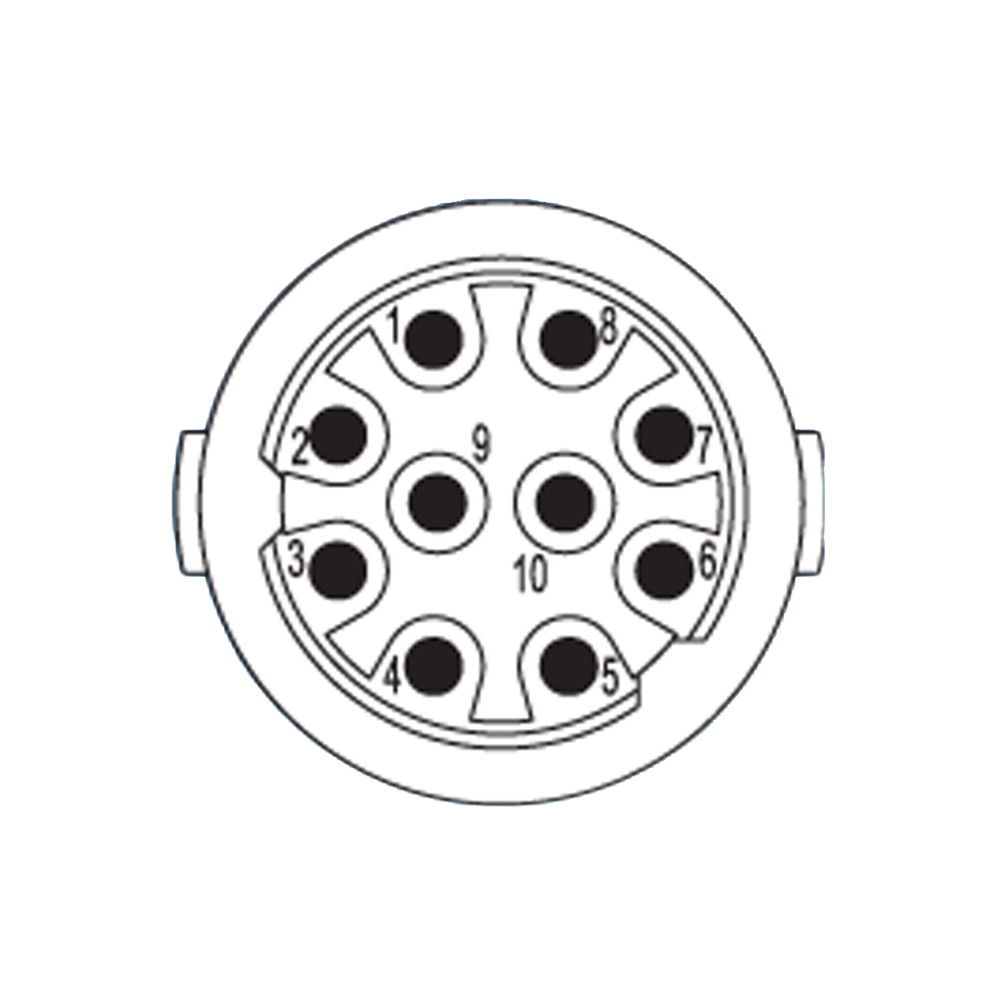

M16 Connector 10-Pole Socket (Female) Insert with dip solder contacts length 10mm
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Number of Positions: 10
Number of Contacts: 10
Contact Ø (mm): 1
AWG [mm2]: 0.14 - 0.75
Nominal Current [A]: 8
Nominal Voltage [V~]: 160
Test Voltage (Breakdown Voltage) [V~]: 1500
Insulation Resistance [MΩ]: > 106
Max. Contact Resistance [mΩ]: 3
