Sealcon #: S7.001.917.103
M23 Signal Connector Insert Configurations

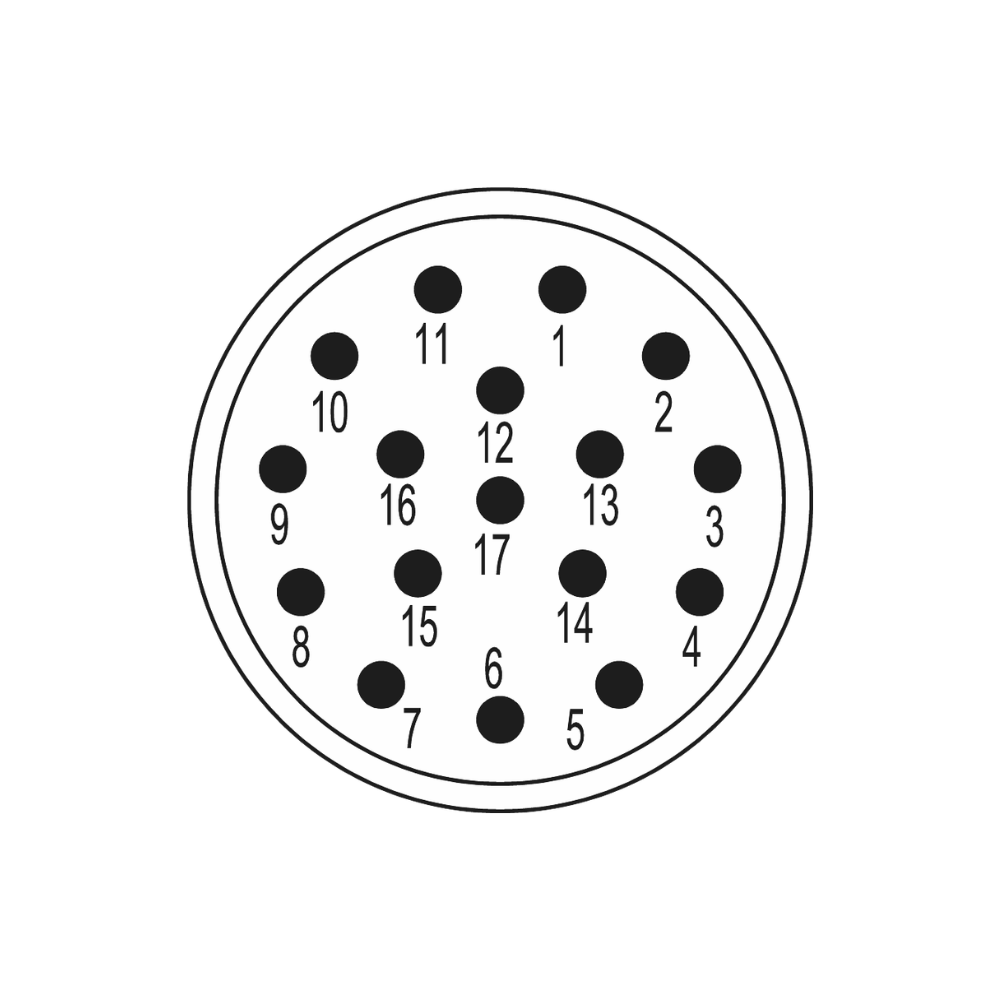

Hummel: M 23 Signal Insert, 17-pole, Pinout clockwise
Hummel #: 7.001.917.103
Insert – with Solder Contacts
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Number of Positions: 17
Number of Contacts: 17
Contact Ø (mm): 1
Nominal Current [A]: 8
Nominal Voltage [V~]: 160
Test Voltage (Breakdown Voltage) [V~]: 1500
Insulation Resistance [MΩ]: > 106
Max. Contact Resistance [mΩ]: 3 INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.917.103 Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.917.104
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.917.107
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.917.108
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 1500V~
Insulation resistance signal > 10^6 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhmS7.001.917.118
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.917.127
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.917.137
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.002.917.103
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.002.917.104
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.002.917.107
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω

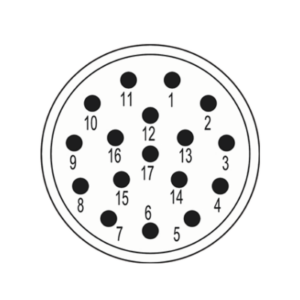

max. contact resistance signal 3 mOhmS7.002.917.108
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.002.917.118
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.002.917.127
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.002.917.137
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.003.917.101
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.003.917.102
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.004.917.101
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.004.917.102
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
