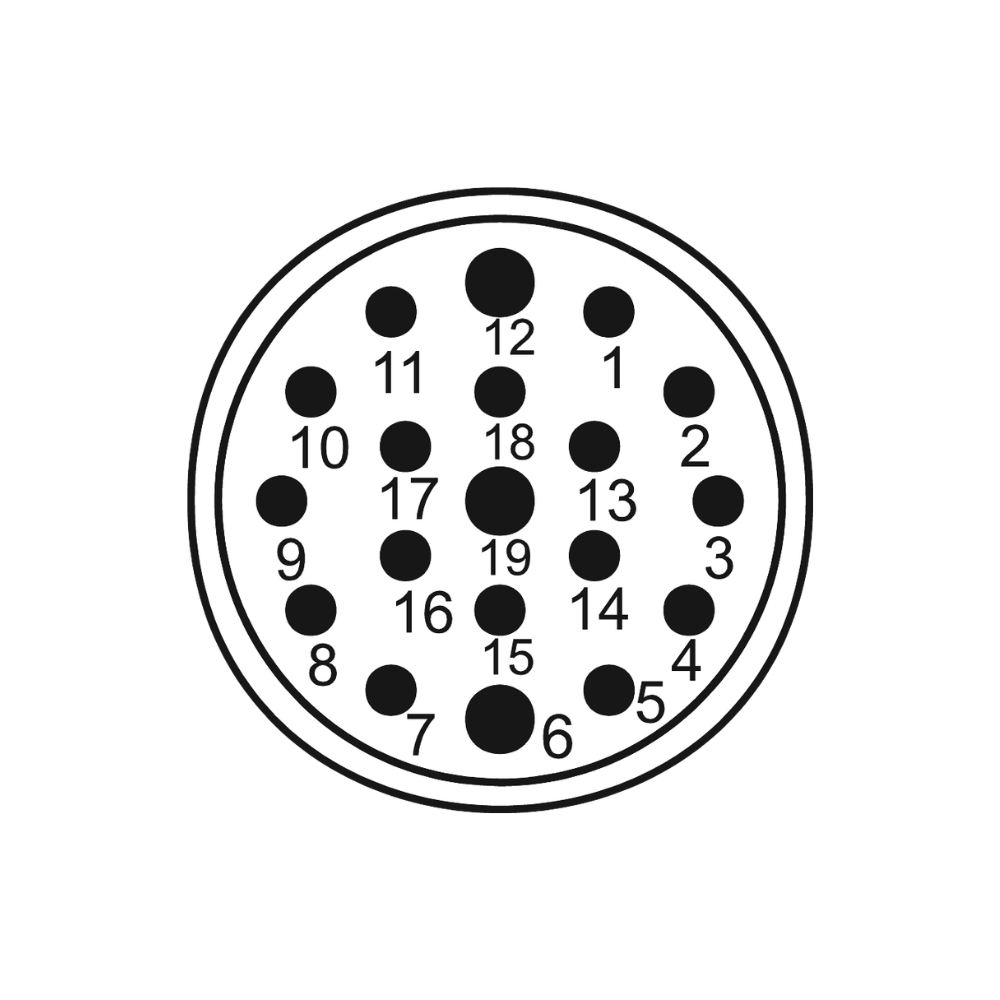

Sealcon #: S7.001.919.103
M23 Signal Connector Insert Configurations
Hummel: M 23 Signal Insert, 19-pole
Hummel #: 7.001.919.103
Insert – with Solder Contacts
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Number of Positions: 19 | (16 + 3)
Number of Contacts: 16 | 3
Contact Ø (mm): 1 | 1.5
Nominal Current [A]: 8 | 10
Nominal Voltage [V~]: 100
Test Voltage (Breakdown Voltage) [V~]: 1500
Insulation Resistance [MΩ]: > 106
Max. Contact Resistance [mΩ]: 3 INSERTS

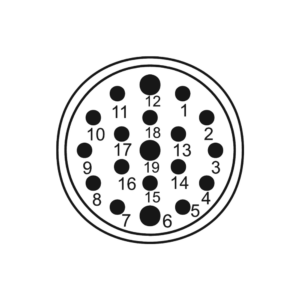

Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.919.103
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Number of Positions: 19 | (16 + 3)
Number of Contacts: 16 | 3
Contact Ø (mm): 1 | 1.5
Nominal Current [A]: 8 | 10
Nominal Voltage [V~]: 100
Test Voltage (Breakdown Voltage) [V~]: 1500
Insulation Resistance [MΩ]: > 106

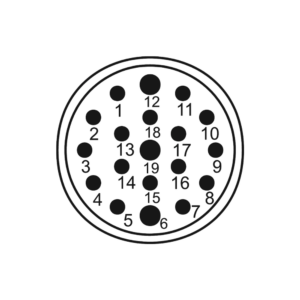

Max. Contact Resistance [mΩ]: 3S7.001.919.104
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact-Ø[mm] 1 / 1,5
Nominal current ¹)[A] 8 / 10
Nominal voltage ²)[V˜] 320
Nominal voltage ²)[V˜] 100
Test voltage (Breakdown voltage) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.001.919.107
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact-Ø[mm] 1 / 1,5
Nominal current ¹)[A] 8 / 10
Nominal voltage ²)[V˜] 320
Nominal voltage ²)[V˜] 100
Test voltage (Breakdown voltage) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.001.919.108
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact-Ø[mm] 1 / 1,5
Nominal current ¹)[A] 8 / 10
Nominal voltage ²)[V˜] 320
Nominal voltage ²)[V˜] 100
Test voltage (Breakdown voltage) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.001.919.113
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact-Ø[mm] 1 / 1,5
Nominal current ¹)[A] 8 / 10
Nominal voltage ²)[V˜] 320
Nominal voltage ²)[V˜] 100
Test voltage (Breakdown voltage) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.001.919.114
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact-Ø[mm] 1 / 1,5
Nominal current ¹)[A] 8 / 10
Nominal voltage ²)[V˜] 320
Nominal voltage ²)[V˜] 100
Test voltage (Breakdown voltage) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.001.919.118
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact-Ø[mm] 1 / 1,5
Nominal current ¹)[A] 8 / 10
Nominal voltage ²)[V˜] 320
Nominal voltage ²)[V˜] 100
Test voltage (Breakdown voltage) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.001.919.127
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact-Ø[mm] 1 / 1,5
Nominal current ¹)[A] 8 / 10
Nominal voltage ²)[V˜] 320
Nominal voltage ²)[V˜] 100
Test voltage (Breakdown voltage) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.001.919.137
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact Ø signal 1 mm
Contact Ø performance 1.5mm
Rated current signal 8 A
Rated current power 10A
Rated voltage at pollution level 3 signal 110V~
Rated voltage at pollution degree 3 performance 110V~
Test voltage signal 370V~
Test voltage performance 840V~
Insulation resistance signal > 10^8 Ω
Insulation resistance performance > 10^8 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhmS7.003.919.101
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact Ø signal 1 mm
Contact Ø performance 1.5mm
Connection cross section power 0.14 – 1 mm²
Rated current signal 8 A
Rated current power 10A
Rated voltage at pollution level 3 signal 110V~
Rated voltage at pollution degree 3 performance 110V~
Test voltage signal 370V~
Test voltage performance 840V~
Insulation resistance signal > 10^8 Ω
Insulation resistance performance > 10^8 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhmS7.003.919.102
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact Ø signal 1 mm
Contact Ø performance 1.5mm
Connection cross section power 0.14 – 1 mm²
Rated current signal 8 A
Rated current power 10A
Rated voltage at pollution level 3 signal 110V~
Rated voltage at pollution degree 3 performance 110V~
Test voltage signal 370V~
Test voltage performance 840V~
Insulation resistance signal > 10^8 Ω
Insulation
resistance performance > 10^8 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhmS7.003.919.111
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact Ø signal 1 mm
Contact Ø performance 1.5mm
Connection cross section power 0.14 – 1 mm²
Rated current signal 8 A
Rated current power 10A
Rated voltage at pollution level 3 signal 110V~
Rated voltage at pollution degree 3 performance 110V~
Test voltage signal 840V~
Test voltage performance 840V~
Insulation resistance signal > 10^8 Ω
Insulation resistance performance > 10^8 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhmS7.003.919.112
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Contact Ø signal 1 mm
Contact Ø performance 1.5mm
Connection cross section power 0.14 – 1 mm²
Rated current signal 8 A
Rated current power 10A
Rated voltage at pollution level 3 signal 100V~
Rated voltage at pollution degree 3 performance 100V~
Test voltage signal 1500V~
Test voltage performance 1500V~
Insulation resistance signal > 10^6 Ω
Insulation resistance performance > 10^6 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhm
