Sealcon #: S7.003.916.102

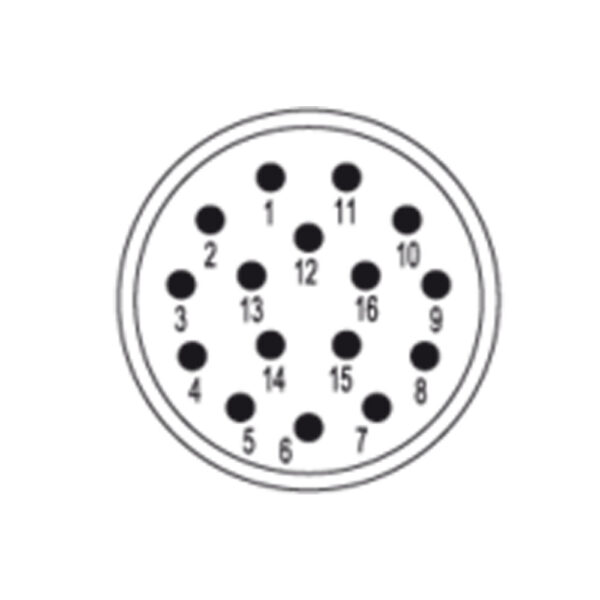

Insert 16-pole
Hummel: M 23 Signal Insert, 16-pole
Hummel #: 7.003.916.102
Insert – without Contacts
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog PageINSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.916.103
Insert 16-pole 16 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.916.104
Insert 16-pole 16 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.916.107
Insert 16-pole 16 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.916.108
Insert 16-pole 16 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.916.118
Insert 16-pole 16 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.916.127
Insert 16-pole 16 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.916.137
Insert 16-pole 16 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.003.916.101
Insert 16-pole 16 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.003.916.102
Insert 16-pole 16 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)
