M23 Signal Connector Pin Contact | S7.010.901.021

Sealcon #: S7.010.901.021

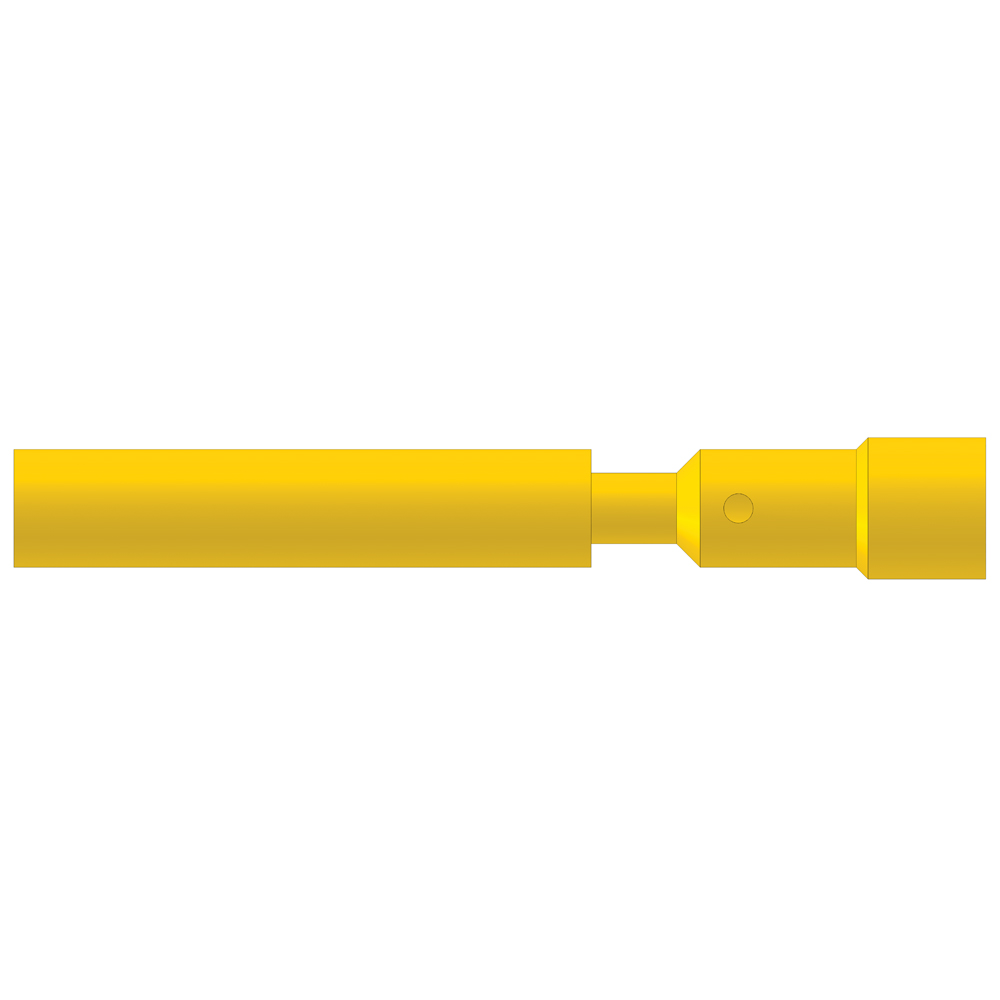

Crimp Pin 1mm Machined Contact AWG 28 - AWG 20
Hummel: CC-Contacts
Hummel #: 7.010.901.021

This Contact has multiple Insert Configurations.
Details for configurations can be found under Technical Data.

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Crimp Range0.75 - 1.5 mm2AWG 18 - AWG 16
PDF DOWNLOADS
Catalog Page
  • Features

    Contacts are specific to the Inserts and number of Poles on your Connector.

    • There are two types of Contacts: Pins and Sockets. Pins are installed as Male connections and Sockets are installed as Female connections.
    • Each Pin or Socket contact has a different installation based on the number of Contacts needed and size of the Contact.

    • For example, if your Connector has a 3-Pole Insert labeled (3 x 1mm), you need three 1mm Contacts for your Insert. Likewise, if your Connector has a 3-Pole insert labeled (3 x 2mm), you need three 2mm contacts.
    • Contacts are not universal, so check to see if there is a Required Contact for your installation.
    • If you have any questions please submit a quote and one of our experts will contact you to verify you have the correct configuration for your desired Connector.



  • This Contact is Universal for any M23 Signal 1mm Insert.

    Type of Contact: Crimp Pin 1 mm Machined

    Crimp Range: 1 mm2 - 1.5 mm2 AWG 17 - AWG 16

    Click Here for Crimp Tool Settings

  • CONTACTS

    Part NumberImageAdd to QuoteType of ContactCrimp Range
    S7.010.901.021
    Crimp Pin 1 mm Machined0.75 - 1.5 mm2AWG 18 - AWG 16
