Sealcon #: S7.010.901.512

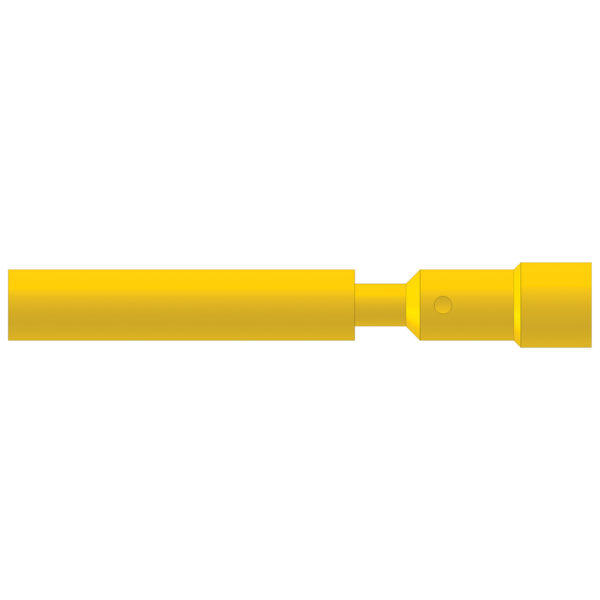

Crimp Socket 1.5 mm Machined Contact
Hummel: CC-Contacts
Hummel #: 7.010.901.512
This Contact has multiple Insert Configurations.
Details for configurations can be found under Technical Data.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Crimp Range | 0.14 mm2- 0.56 mm2 AWG 26 - AWG 20 |
---|
PDF DOWNLOADS
Catalog Page-
Features
Contacts are specific to the Inserts and number of Poles on your Connector.
- There are two types of Contacts: Pins and Sockets. Pins are installed as Male connections and Sockets are installed as Female connections.
- For example, if your Connector has a 3-Pole Insert labeled (3 x 1mm), you need three 1mm Contacts for your Insert. Likewise, if your Connector has a 3-Pole insert labeled (3 x 2mm), you need three 2mm contacts.
- Contacts are not universal, so check to see if there is a Required Contact for your installation.
Each Pin or Socket contact has a different installation based on the number of Contacts needed and size of the Contact.
If you have any questions please submit a quote and one of our experts will contact you to verify you have the correct configuration for your desired Connector.
-
This Contact is Universal for any M23 Signal 1.5 mm Insert.
Type of Contact: Crimp Socket 1.5 mm Machined
Crimp Range: 0.14 mm2- 0.56 mm2 AWG 26 - AWG 20
Click Here for Crimp Tool Settings CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.901.512 Crimp Socket 1.5 mm Machined 0.14 mm2- 0.56 mm2 AWG 26 - AWG 20
