Features

Contacts are specific to the Inserts and number of Poles on your Connector.

• There are two types of Contacts: Pins and Sockets. Pins are installed as Male connections and Sockets are installed as Female connections.

Each Pin or Socket contact has a different installation based on the number of Contacts needed and size of the Contact.

• For example, if your Connector has a 3-Pole Insert labeled (3 x 1mm), you need three 1mm Contacts for your Insert. Likewise, if your Connector has a 3-Pole insert labeled (3 x 2mm), you need three 2mm contacts.
• Contacts are not universal, so check to see if there is a Required Contact for your installation.

If you have any questions please submit a quote and one of our experts will contact you to verify you have the correct configuration for your desired Connector.

CONTACTS

Part Number	Image	Add to Quote	Type of Contact	Crimp Range

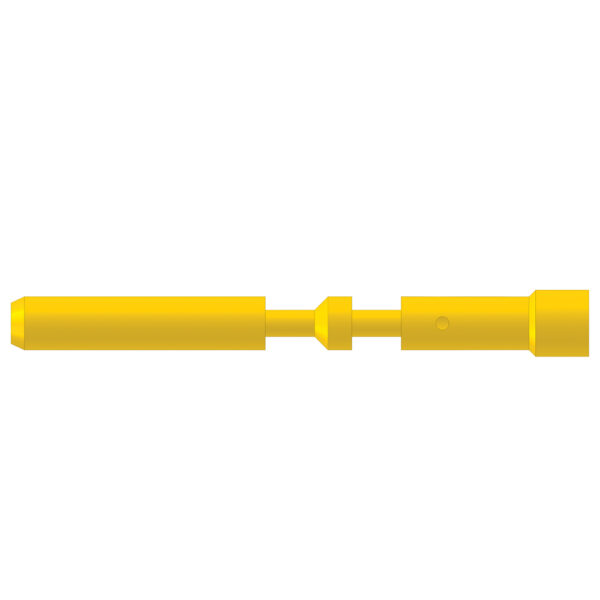

S7.010.941.022		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 1 mm Machined	0.75 - 1.5 mm2 AWG 18 - AWG 16

APPROVALS

• Restriction of Hazardous Substances in Electrical and Electronic Equipment
• Deca-Bromo-Diphenyl-Ether Compliance
• Registration, Evaluation, Authorization and Restriction of Chemicals
• Waste Electrical and Electronic Equipment Directive
