Features

Contacts are specific to the Inserts and number of Poles on your Connector.

• • There are two types of Contacts: Pins and Sockets. Pins are installed as Male connections and Sockets are installed as Female connections.

Each Pin or Socket contact has a different installation based on the number of Contacts needed and size of the Contact.

• • For example, if your Connector has a 3-Pole Insert labeled (3 x 1mm), you need three 1mm Contacts for your Insert. Likewise, if your Connector has a 3-Pole insert labeled (3 x 2mm), you need three 2mm contacts.
  • Contacts are not universal, so check to see if there is a Required Contact for your installation.

If you have any questions please submit a quote and one of our experts will contact you to verify you have the correct configuration for your desired Connector.

• 8-pole (4+3+PE) Configuration - 4 x 0.8mm
• 15-Pole (12+3) Configuration - 12 x 0.8mm
• 18-Pole Configuration - 18 x 0.8mm

INSERTS

Part Number	Image	Add to Quote	Number of Poles	Required Contacts	Electrical Data
S7.001.943.108		Add to Quote This product is already in your quote request list. View Quote Request	Insert 8-pole (4+3+PE)	4 x 0.8 mm / 4 x 1.6 mm	Number of Positions: 4 + 3 +PE / 320V Number of Contacts: 4 | 4 Contact-Ø (mm): 0.8 | 1.6 AWG [mm2]: 0.08 - 0.34 | 0.34 - 1.5 Nominal Current1) [A]: 5 | 16 Nominal Voltage2) [V~] degree of protection 34): 160 | 320 Test Voltage (Breakdown Voltage) 3) [V~]: 1500 | 2500 Insulation Resistance [MΩ]: >1010 Max. Contact Resistance [mΩ]: 3
S7.001.943.118		Add to Quote This product is already in your quote request list. View Quote Request	Insert 8-pole (4+3+PE)	4 x 0.8 mm / 4 x 1.6 mm	Contact-Ø[mm] 0,8 / 1,6 AWG [mm²] 008,-0,34 0,34-1,5 Nominal current ¹)[A] 5/16 Nominal voltage ²)[V˜] 320 / 630 Nominal voltage ²)[V˜] 160/320 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3

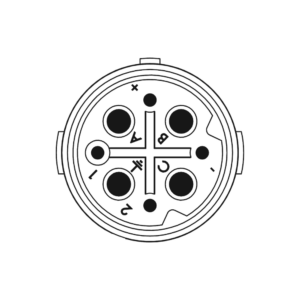

S7.001.943.127		Add to Quote This product is already in your quote request list. View Quote Request	Insert 8-pole (4+3+PE)	4 x 0.8 mm / 4 x 1.6 mm	Contact-Ø[mm] 0,8 / 1,6 AWG [mm²] 008,-0,34 0,34-1,5 Nominal current ¹)[A] 5/16 Nominal voltage ²)[V˜] 320 / 630 Nominal voltage ²)[V˜] 160/320 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.943.137		Add to Quote This product is already in your quote request list. View Quote Request	Insert 8-pole (4+3+PE)	4 x 0.8 mm / 4 x 1.6 mm	Contact-Ø[mm] 0,8 / 1,6 AWG [mm²] 008,-0,34 0,34-1,5 Nominal current ¹)[A] 5/16 Nominal voltage ²)[V˜] 320 / 630 Nominal voltage ²)[V˜] 160/320 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.985.118		Add to Quote This product is already in your quote request list. View Quote Request	Insert 15-Pole (12+3)	12 x 0.8 mm/3 x 1.25 mm	Number of Positions: 12 + 3 Number of Contacts: 12 | 3 Contact-Ø (mm): 0.8 | 1.25 AWG [mm2]: 0.08 - 0.34 | 0.34 - 1.5 Nominal Current1) [A]: 3 | 10 Nominal Voltage2) [V~] degree of protection 34): 24 | 60 Test Voltage (Breakdown Voltage) 3) [V~]: 1500 | 2500 Insulation Resistance [MΩ]: >1010 Max. Contact Resistance [mΩ]: 3 |3
S7.001.985.127		Add to Quote This product is already in your quote request list. View Quote Request	Insert 15-Pole (12+3)	12 x 0.8 mm/3 x 1.25 mm	Contact-Ø[mm] 0,8 / 1,25 AWG [mm²] 008,-0,34 0,5-1,5 Nominal current ¹)[A] 3/10 Nominal voltage ²)[V˜] 60 / 160 Nominal voltage ²)[V˜] 24 / 60 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.985.137		Add to Quote This product is already in your quote request list. View Quote Request	Insert 15-Pole (12+3)	12 x 0.8 mm/3 x 1.25 mm	Contact-Ø[mm] 0,8 / 1,25 AWG [mm²] 008,-0,34 0,5-1,5 Nominal current ¹)[A] 3/10 Nominal voltage ²)[V˜] 60 / 160 Nominal voltage ²)[V˜] 24 / 60 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.988.108		Add to Quote This product is already in your quote request list. View Quote Request	Insert 18-Pole	18 x 0.8 mm	Number of Positions: 18 Number of Contacts: 18 Contact-Ø (mm): 0.8 AWG [mm2]: 0.08 - 0.34 Nominal Current1) [A]: 3 Nominal Voltage2) [V~] degree of protection 34): 24 Test Voltage (Breakdown Voltage) 3) [V~]: 1500 Insulation Resistance [MΩ]: >1010 Max. Contact Resistance [mΩ]: 3
S7.001.988.118		Add to Quote This product is already in your quote request list. View Quote Request	Insert 18-Pole	18 x 0.8 mm	Contact-Ø[mm] 0,8 AWG [mm²] 008,-0,34 Nominal current ¹)[A] 3 Nominal voltage ²)[V˜] 60 Nominal voltage ²)[V˜] 24 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.988.127		Add to Quote This product is already in your quote request list. View Quote Request	Insert 18-Pole	18 x 0.8 mm	Contact-Ø[mm] 0,8 AWG [mm²] 008,-0,34 Nominal current ¹)[A] 3 Nominal voltage ²)[V˜] 60 Nominal voltage ²)[V˜] 24 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.988.137		Add to Quote This product is already in your quote request list. View Quote Request	Insert 18-Pole	18 x 0.8 mm	Contact-Ø[mm] 0,8 AWG [mm²] 008,-0,34 Nominal current ¹)[A] 3 Nominal voltage ²)[V˜] 60 Nominal voltage ²)[V˜] 24 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.003.943.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 8-pole (4+3+PE)	4 x 0.8 mm / 4 x 1.6 mm	Contact-Ø[mm] 0,8 / 1,6 AWG [mm²] 008,-0,34 0,34-1,5 Nominal current ¹)[A] 5/16 Nominal voltage ²)[V˜] 320 / 630 Nominal voltage ²)[V˜] 160/320 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.003.943.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 8-pole (4+3+PE)	4 x 0.8 mm / 4 x 1.6 mm	Contact-Ø[mm] 0,8 / 1,6 AWG [mm²] 008,-0,34 0,34-1,5 Nominal current ¹)[A] 5/16 Nominal voltage ²)[V˜] 320 / 630 Nominal voltage ²)[V˜] 160/320 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.003.985.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 15-Pole (12+3)	12 x 0.8 mm	Contact-Ø[mm] 0,8 / 1,25 AWG [mm²] 008,-0,34 0,5-1,5 Nominal current ¹)[A] 3/10 Nominal voltage ²)[V˜] 60 / 160 Nominal voltage ²)[V˜] 24 / 60 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.003.985.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 15-Pole (12+3)	12 x 0.8 mm/3 x 1.25 mm	Contact-Ø[mm] 0,8 / 1,25 AWG [mm²] 008,-0,34 0,5-1,5 Nominal current ¹)[A] 3/10 Nominal voltage ²)[V˜] 60 / 160 Nominal voltage ²)[V˜] 24 / 60 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.003.988.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 18-Pole	18 x 0.8 mm	Contact-Ø[mm] 0,8 AWG [mm²] 008,-0,34 Nominal current ¹)[A] 3 Nominal voltage ²)[V˜] 60 Nominal voltage ²)[V˜] 24 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.003.988.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 18-Pole	18 x 0.8 mm	Contact-Ø[mm] 0,8 AWG [mm²] 008,-0,34 Nominal current ¹)[A] 3 Nominal voltage ²)[V˜] 60 Nominal voltage ²)[V˜] 24 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.053.943.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 8-pole (4+3+PE)	4 x 0.8 mm / 4 x 1.6 mm	Contact-Ø[mm] 0,8 / 1,6 AWG [mm²] 008,-0,34 0,34-1,5 Nominal current ¹)[A] 5/16 Nominal voltage ²)[V˜] 320 / 630 Nominal voltage ²)[V˜] 160/320 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.053.943.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 8-pole (4+3+PE)	4 x 0.8 mm / 4 x 1.6 mm	Contact-Ø[mm] 0,8 / 1,6 AWG [mm²] 008,-0,34 0,34-1,5 Nominal current ¹)[A] 5/16 Nominal voltage ²)[V˜] 320 / 630 Nominal voltage ²)[V˜] 160/320 Test voltage (Breakdown voltage) ³) [V˜] 1500/2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.053.988.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 18-Pole	18 x 0.8 mm	Contact-Ø[mm] 0,8 AWG [mm²] 008,-0,34 Nominal current ¹)[A] 3 Nominal voltage ²)[V˜] 60 Nominal voltage ²)[V˜] 24 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3

CONTACTS

Part Number	Image	Add to Quote	Type of Contact	Crimp Range

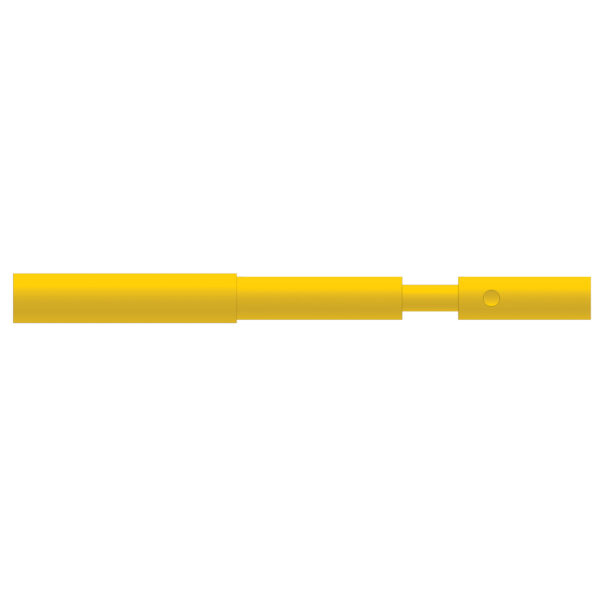

S7.010.980.802		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 0.8 mm Machined	0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22
