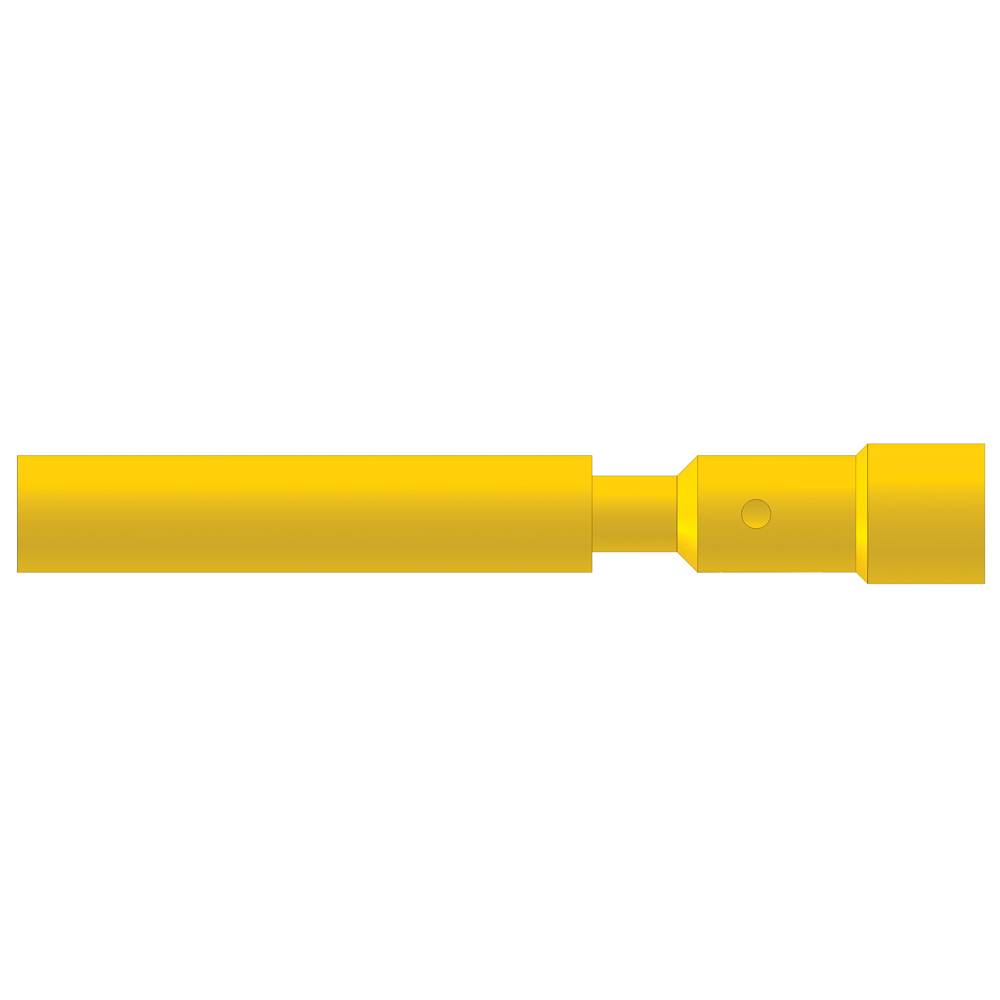

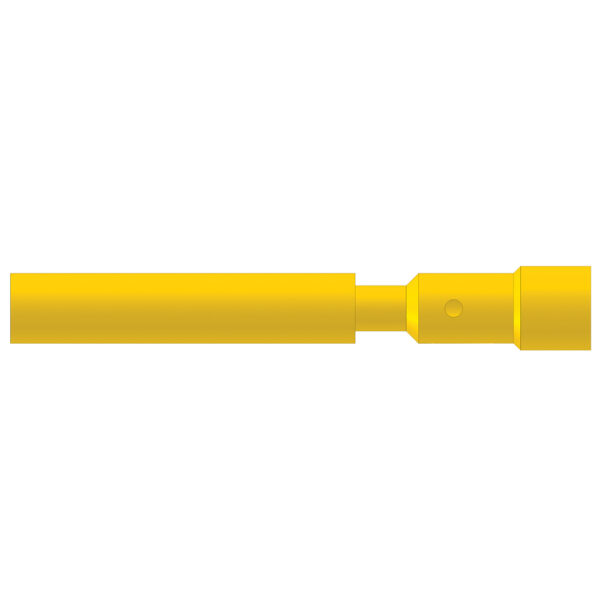

Insert 10-pole Socket Contact | S7.010.981.002

Sealcon #: S7.010.981.002
Crimp Socket 1 mm Req.Contact: [req contact]
Hummel: CC-Contacts
Hummel #: 7.010.981.002

This Contact is Required for specific Insert Configurations.
Details for configurations can be found under Technical Data.

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Crimp Range0.08 mm2 - 0.75 mm2AWG 28 - AWG 18
  • Features

    Contacts are specific to the Inserts and number of Poles on your Connector.

    • There are two types of Contacts: Pins and Sockets. Pins are installed as Male connections and Sockets are installed as Female connections.
    • Each Pin or Socket contact has a different installation based on the number of Contacts needed and size of the Contact.

    • For example, if your Connector has a 3-Pole Insert labeled (3 x 1mm), you need three 1mm Contacts for your Insert. Likewise, if your Connector has a 3-Pole insert labeled (3 x 2mm), you need three 2mm contacts.
    • Contacts are not universal, so check to see if there is a Required Contact for your installation.
    • If you have any questions please submit a quote and one of our experts will contact you to verify you have the correct configuration for your desired Connector.



  • This Contact Is Required for M16 Signal Connectors

    Insert type Socket/Female for Pole & Configuration:

    • 10-pole
    • Config. 10 x 1 mm

    Type of Contact: Crimp Socket 1 mm Machined

    Crimp Range: 0.08 mm2 - 0.75 mm2 AWG 28 - AWG 18

    Click Here for Crimp Tool Settings

  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    S7.001.908.108
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mm•Number of Positions: 4 + 3 +PE / 630V•Number of Contacts: 4 | 4•Contact-Ø (mm): 0.8 | 1.25•AWG [mm2]: 0.08 - 0.34 | 0.34 - 1.5•Nominal Current1) [A]: 5 | 16•Nominal Voltage2) [V~] degree of protection 34): 300 | 630•Test Voltage (Breakdown Voltage) 3) [V~]: 1500 | 2500•Insulation Resistance [MΩ]: >1010•Max. Contact Resistance [mΩ]: 3 | 3
    S7.001.908.118
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.908.127
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.908.137
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.003.908.101
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.003.908.102
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.053.908.101
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.053.908.102
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
  • CONTACTS

    Part NumberImageAdd to QuoteType of ContactCrimp Range
    S7.010.981.002
    Crimp Socket 1 mm Machined0.08 mm2 - 0.75 mm2AWG 28 - AWG 18
