Insert 8-pole (4+3+PE 630V) / Insert 6+PE Pin Contact | S7.010.981.211

Sealcon #: S7.010.981.211

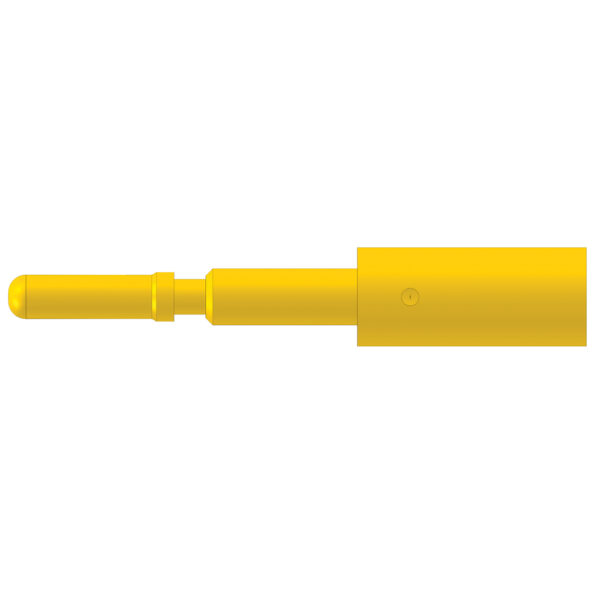

Crimp Pin 1.25mm Required Contact:
[req contact]
Hummel #: 7.010.981.211

This Contact is Required for specific Insert Configurations.
Details for configurations can be found under Technical Data.

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Crimp Range0.34mm2 - 1.5 mm2 AWG 22 - AWG 16
PDF DOWNLOADS
Catalog Page
  • Features

    Contacts are specific to the Inserts and number of Poles on your Connector.

      • There are two types of Contacts: Pins and Sockets. Pins are installed as Male connections and Sockets are installed as Female connections.

    Each Pin or Socket contact has a different installation based on the number of Contacts needed and size of the Contact.

      • For example, if your Connector has a 3-Pole Insert labeled (3 x 1mm), you need three 1mm Contacts for your Insert. Likewise, if your Connector has a 3-Pole insert labeled (3 x 2mm), you need three 2mm contacts.
      • Contacts are not universal, so check to see if there is a Required Contact for your installation.

    If you have any questions please submit a quote and one of our experts will contact you to verify you have the correct configuration for your desired Connector.



  • This Contact Is Required for M16 Signal Connectors

    Insert type Pin/Male for Poles & Configurations:

    • 8-pole (4+3+PE 630V) Configuration - 4 x 1.25 mm
    • 6+PE Configuration - 7 x 1.25 mm

    Type of Contact: Crimp Pin 1.25 mm Machined

    Crimp Range: 0.5 mm2 - 1.5 mm2

    Click Here for Crimp Tool Settings

  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    S7.001.908.108
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mm•Number of Positions: 4 + 3 +PE / 630V•Number of Contacts: 4 | 4•Contact-Ø (mm): 0.8 | 1.25•AWG [mm2]: 0.08 - 0.34 | 0.34 - 1.5•Nominal Current1) [A]: 5 | 16•Nominal Voltage2) [V~] degree of protection 34): 300 | 630•Test Voltage (Breakdown Voltage) 3) [V~]: 1500 | 2500•Insulation Resistance [MΩ]: >1010•Max. Contact Resistance [mΩ]: 3 | 3
    S7.001.908.118
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.908.127
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.908.137
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.961.108
    Insert 6+PE7 x 1.25 mmNumber of Positions: 3 (3 x 1 mm)
    Number of Contacts: 3
    Contact-Ø (mm): 1
    AWG [mm2]: 0,14 - 1
    Nominal Current1) [A]: 8
    Nominal Voltage2) [V~] degree of protection 34): 400
    Test Voltage (Breakdown Voltage) 3) [V~]: 2500
    Insulation Resistance [MΩ]: >1010
    Max. Contact Resistance [mΩ]: 3
    S7.001.961.118
    Insert 6+PE7 x 1.25 mm
    S7.001.961.127
    Insert 6+PE7 x 1.25 mm
    S7.001.961.137
    Insert 6+PE7 x 1.25 mm
    S7.003.908.101
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.003.908.102
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.003.961.101
    Insert 6+PE7 x 1.25 mm
    S7.003.961.102
    Insert 6+PE7 x 1.25 mm
    S7.053.908.101
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.053.908.102
    Insert 8-pole (4+3+PE 630V)4 x 0.8 mm / 4 x 1.25 mmContact-Ø[mm] 0,8 / 1,25
    AWG [mm²] 008,-0,34 0,34-1,5
    Nominal current ¹)[A] 5/16
    Nominal voltage ²)[V˜] 300 / 800
    Nominal voltage ²)[V˜] 300 / 630
    Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.053.961.101
    Insert 6+PE7 x 1.25 mm
    S7.053.961.102
    Insert 6+PE7 x 1.25 mm
  • CONTACTS

    Part NumberImageAdd to QuoteType of ContactCrimp Range
    S7.010.981.211
    Crimp Pin 1.25 mm Machined0.34mm2 - 1.5 mm2 AWG 22 - AWG 16
