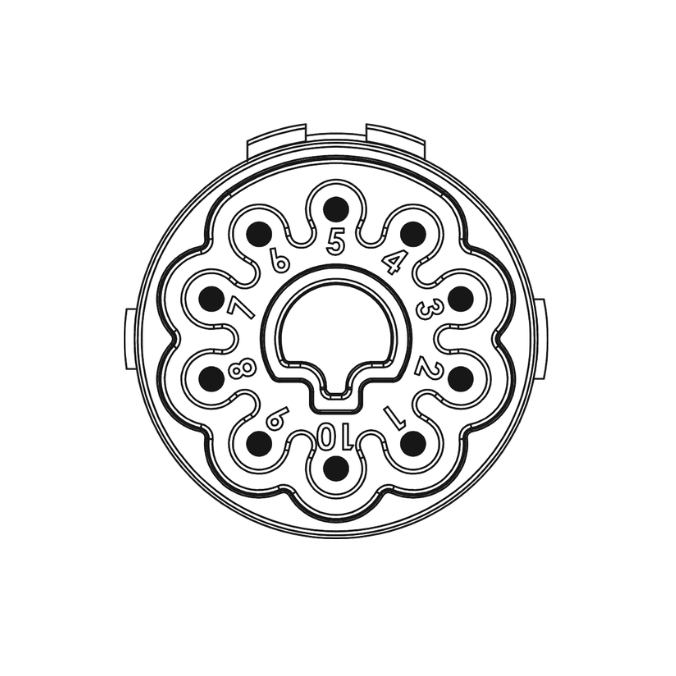

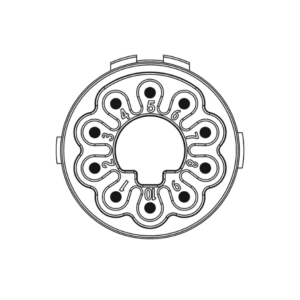

Insert 10-Pole Contacts & Configurations M23 Power Inserts | S7.084.910.101

Sealcon #: S7.084.910.101

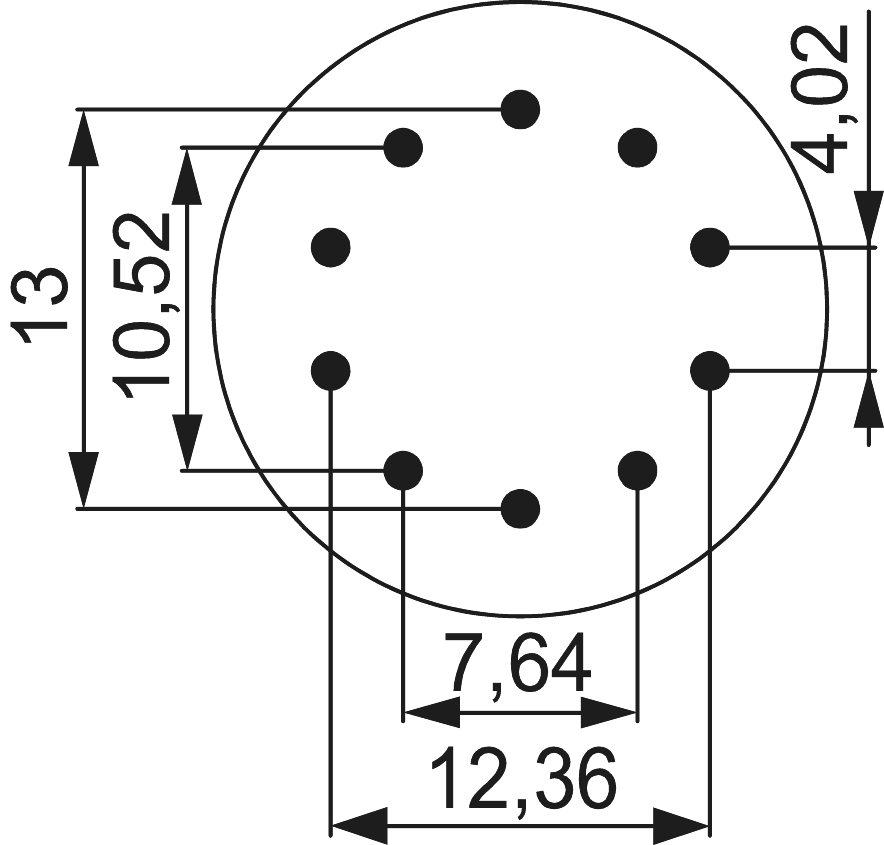

M23 Power Connector Insert Configurations

Hummel #: 7.084.910.101

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Electrical Data PDF

•Number of Positions: 10

•Number of Contacts: 10

•Contact-Ø (mm): 1

•Nominal Current¹⁾ [A]: 10

•Nominal Voltage²⁾ [V~] ^{degree of protection 3}^³⁾: 160

•Test Voltage (Breakdown Voltage) ⁴⁾ [V~]: 2500

•Insulation Resistance [MΩ]: > 10¹³

•Max. Contact Resistance [mΩ]: 3
