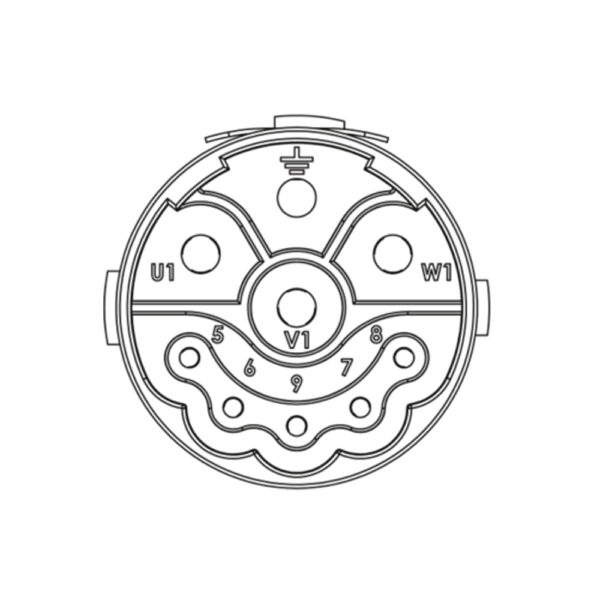

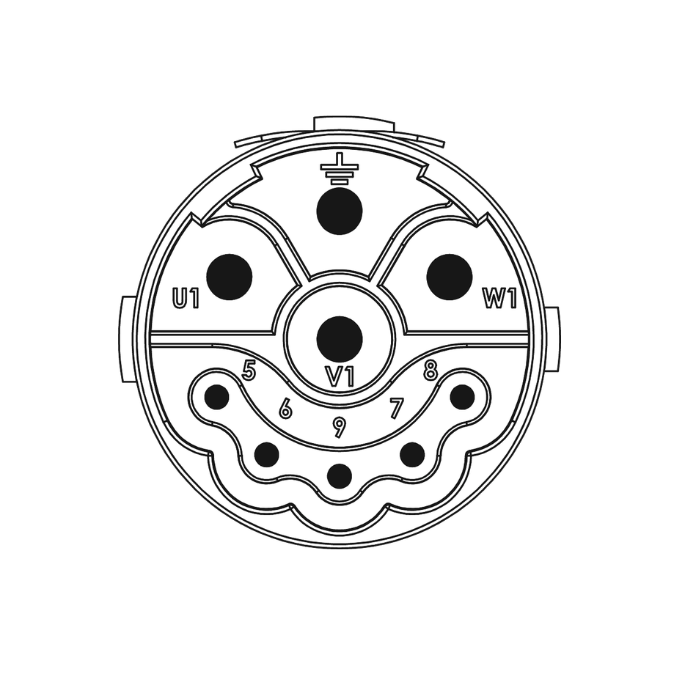

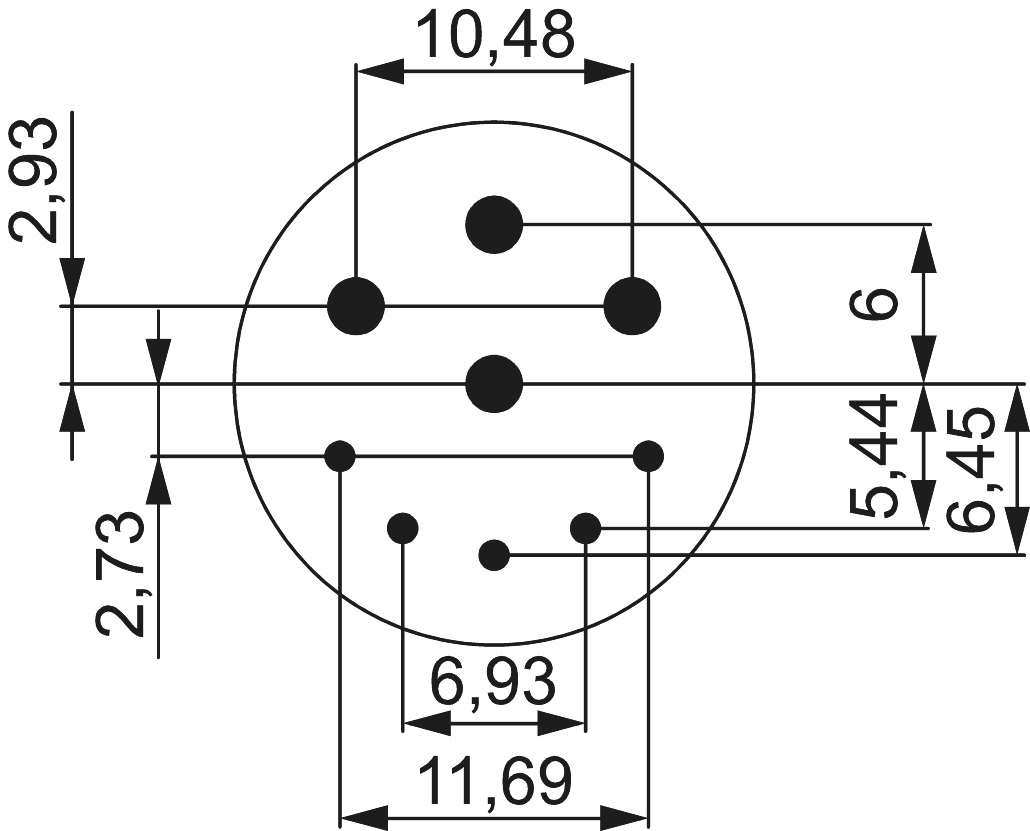

Insert 5 + 3 + PE-pole Contacts & Configurations M23 Power | S7.084.953.101

Sealcon #: S7.084.953.101

M23 Power Connector Insert Configurations

Hummel #: 7.084.953.101

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

• Number of Positions: 5 + 3 + PE

• Number of Contacts: 5 | 4

• Contact-Ø (mm): 1 | 2

• Nominal Current¹⁾ [A]: 10 | 28

• Nominal Voltage²⁾ [V~] ^{degree of protection 3}^³⁾: 250 | 630

•Test Voltage (Breakdown Voltage) ⁴⁾ [V~]: 2500 4000

• Insulation Resistance [MΩ]: > 10¹³

• Max. Contact Resistance [mΩ]: 3
APPROVALS

RELATED PINS

M23 Power Connector Pin Contact | S7.010.941.001

M23 Power Connector Pin Contact | S7.010.942.001

M23 Power Connector Pin Contact | S7.010.942.011

Insert 5 + 3 + PE-pole Contacts & Configurations M23 Power | S7.084.953.101
