Sealcon #: S7.742.043.000

(housing only)

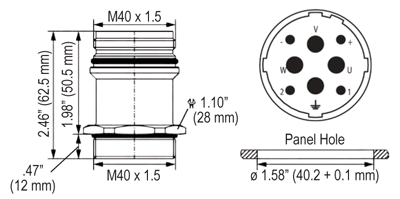

M40 Power Panel Connector

Cable Range: Thread M40 x 1.5

Hummel: M40 Panel Connector, Single Hole Mounted, 4+3+PE

Hummel #: 7.742.043.000

Add to Quote

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Catalog Page Data Sheet Assembly Instructions

Features
- Rugged design
- For up to 55 A applications
Pressure Rating:
IP 67 / IP 69 K per EN 60 529 (connected), Type NEMA 4x

Mechanical Data:
Housing Die Casting (Zinc)
Housing Surface: Nickel Plated

Contacts: Gold-plated Brass Alloy

Type of Contacts: Crimp

Number of Contacts: 6 & 8

Amp Rating: 28 - 55 A

Voltage Rating: 300 - 600 V

Cable OD: .51" - 1.10" (13 - 28 mm)Wire Gauge: 20 - 6 AWG

Part Number	Add to Quote	Type of Contact	Crimp Range
S7.015.952.001	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 2 mm Machined	1.0 mm² - 4.0 mm² (AWG 17 - AWG 12)
S7.015.952.002	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 2 mm Machined	1.0 mm² - 4.0 mm² (AWG 17 - AWG 12)
S7.015.953.601	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 3.6mm Machined	1.5 mm² - 4.0 mm² (AWG 16 - AWG 12)
S7.015.953.602	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 3.6mm Machined	1.5 mm² - 4.0 mm² (AWG 16 - AWG 12)
S7.015.953.611	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 3.6mm Stamped	6.0 mm² (AWG 10)
S7.015.953.612	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 3.6mm Machined	6.0 mm² (AWG 10)
S7.015.953.621	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 3.6mm Machined	10.0 mm² ( AWG 8)
S7.015.953.622	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 3.6mm Machined	( AWG 8)
S7.015.953.631	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 3.6mm Machined	16.0 mm² ( AWG 6)
S7.015.953.632	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 3.6mm Machined	16.0 mm² ( AWG 6)
