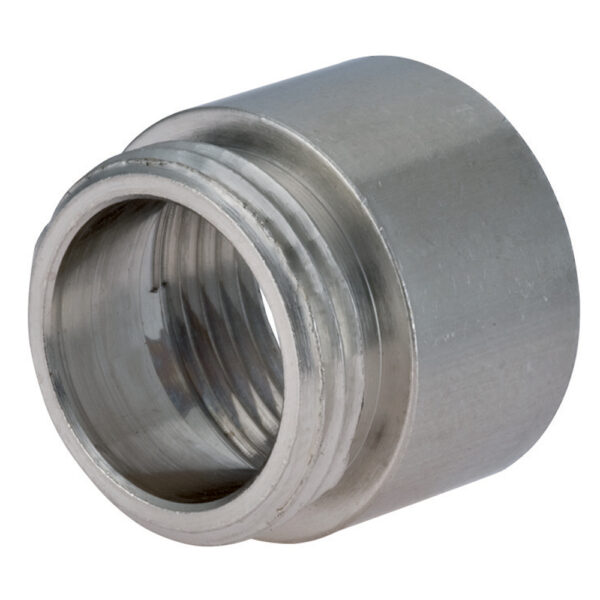

Sealcon #: EM-2532-BR
Color: Nickel
Material: Nickel Plated Brass
Hummel #: 1.033.2532.50
Buna-N, FKM or Silicone O-Ring option available.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Thread Type Male (A) | M25 x 1.5 |
|---|---|
| Female (B) | M32 x 1.5 |
| Height (H) | 0.83" (21 mm) |
| Thread Length (T) | 0.26" (6.5 mm) |
| Outer Diameter (D) | 1.34" (34 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
Is your thread size off by one size?
These Enlargers will solve that threading problem.Enlargers will allow you to convert holes which fit PG, NPT & Metric threads to a larger female thread of the same thread type to fit your application needs.
Thread Enlargers are available in Black Nylon and Nickel Plated Brass.
-
Operating Temperature will vary based off selected O-Ring and the material of the product it is applied to.
