Sealcon #: FCPE10
Size: Hensel Accessories K
Material: Terminal for Hensel
Hensel #: FC PE 10

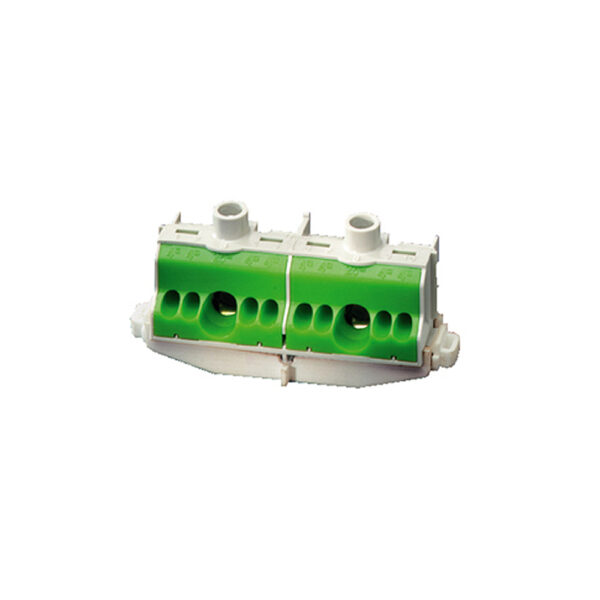

PE terminal
2 x 25 mm², 8 x 4 mm², Cu
For installation on DIN rails in accordance with IEC 60715, top hat profile 35 mm
For boxes with 1 x 12 modules (through terminal reduction to 9 modules)
FIXCONNECT® plug-in terminal technology, for terminal technology refer to technical data
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c.
Weight 0,058 kg
