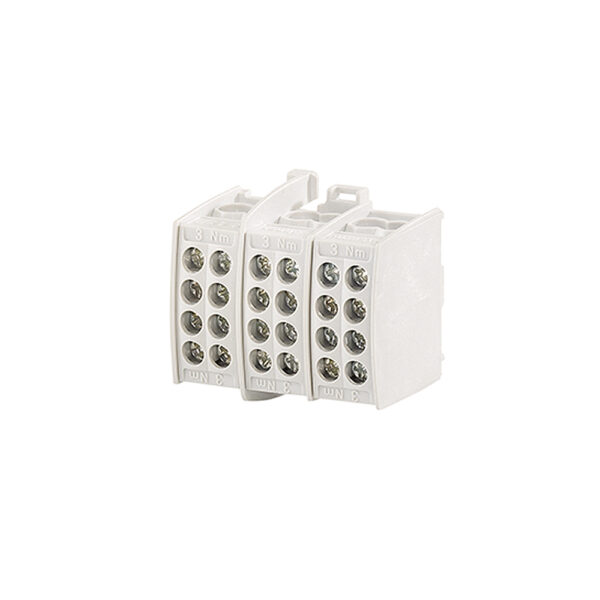

Main line branch terminal
Rated connecting capacity: 1.5-25 mm², Cu
As a connecting terminal
For installation on DIN rails in accordance with IEC 60715, top hat profile 35 mm
Connections per terminal L1-L3: 4x
Connection: 1.5-16 mm² f* or 2.5-25 mm², Cu, round conductor
f* = with gas-tight end ferrule
Current carrying capacity: 80 A
Width: 61 mm
