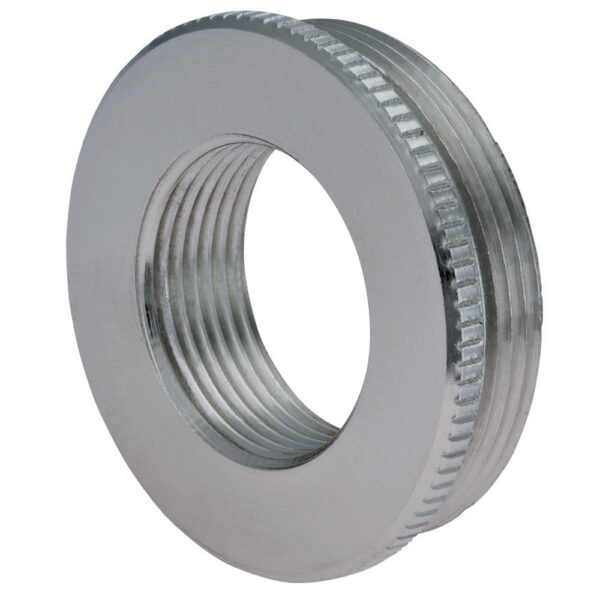

Sealcon #: RR-1612-BR
Color: Nickel
Material: Nickel Plated Brass
Hummel: R-H
Hummel #: 1.076.1612.50
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Thread Type Male (A) | M16 x 1.5 |
|---|---|
| Female (B) | M12 x 1.5 |
| Height (H) | 0.33" (8.5 mm) |
| Thread Length (T) | 0.24" (6 mm) |
| Outer Diameter (D) | 0.71" (18 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
Is your thread size off by one size?
These Reducers will solve that threading problem.
Reducers will allow you to convert holes which fit PG, NPT & Metric threads to a smaller female thread of the same thread type to fit your application needs.
Thread Reducers are available in Gray Nylon, Nickel Plated Brass and Stainless Steel. -
Operating Temperature will vary based off selected O-Ring and the material of the product it is applied to.
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
German Lloyd
