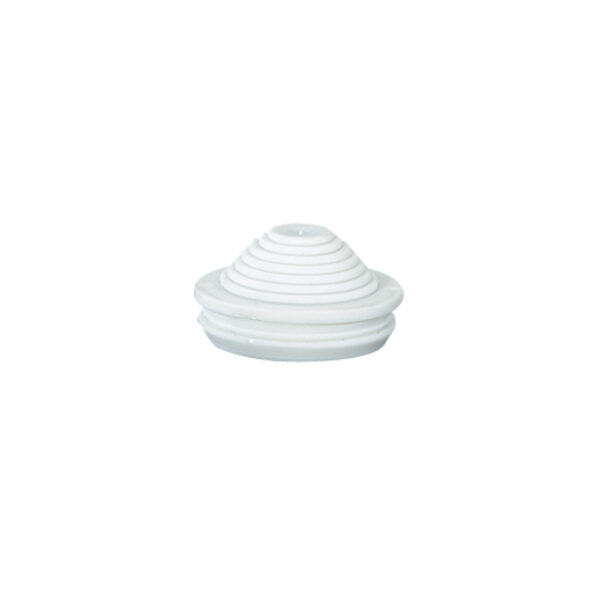

Sealcon #: STM25
Size: Hensel Accessories DK
Material: Stepped Grommet
Hensel #: STM 25
For knockouts M 25
Sealing range: Ø 5-21 mm
bore-hole: Ø 25.5 mm
wall thickness 1.5-4 mm
for indoor – normal environment and (or) protected outdoor installation
ambient temperature – 25 °C to + 35 °C
glow wire test IEC 60695-2-11: 750 °C
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Material TPE (-25° to +80°C)
Diameter 30 mm
Weight 0,003 kg
Glow wire test 750°C IEC 60695-2-11
