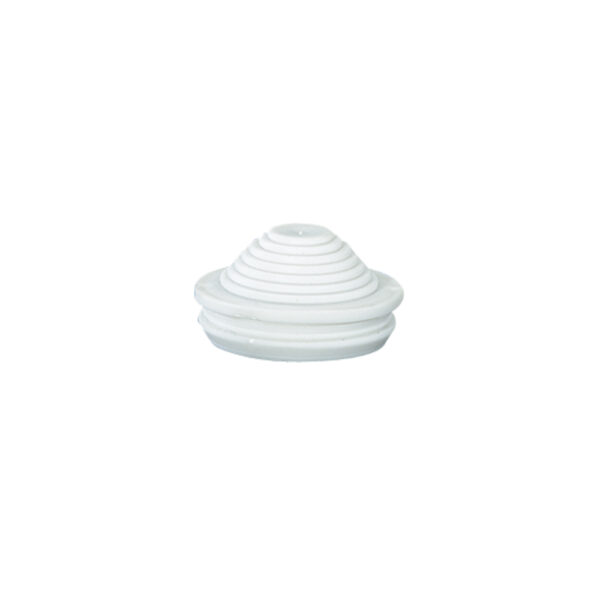

Sealcon #: STM32
Size: Hensel Accessories DK
Material: Stepped Grommet
Hensel #: STM 32
For knockouts M 32
Sealing range: Ø 13-26.5 mm
Bore-hole: Ø 32.5 mm
Wall thickness 1.5-4 mm
For indoor – normal environment and (or) protected outdoor installation
Ambient temperature – 25 °C to + 35 °C
Glow wire test IEC 60695-2-11: 750 °C
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Material TPE (-25° to +80°C)
Diameter 37 mm
Weight 0,005 kg
Glow wire test 750°C IEC 60695-2-11
